The 12/70 Magnum ENTRY I is a special shell for special police units and military users. It is designed for the forcible opening of doors by means of a shot placed next to the strike plate and/or the hinges. The shell is fully compatible with pump-action and semi-automatic shotguns. It is designed for shotguns with Magnum proofing according to C.I.P. Compacted zinc powder with a mass of 32.5 g is used as the active ingredient. This safely penetrates a St-37 type plate with a material thickness of 3mm when fired at a distance of approx. 2 cm from the target. The powder compact disintegrates completely upon impact with the sheet metal, which minimises collateral risk and the user’s exposure to ricochets.
![[Translate to English:]](/resources/public/user_upload/Images/Artikel/Geschossgraphiken_1270/ENTRY-I.png "[Translate to English:]")
Product line DAG

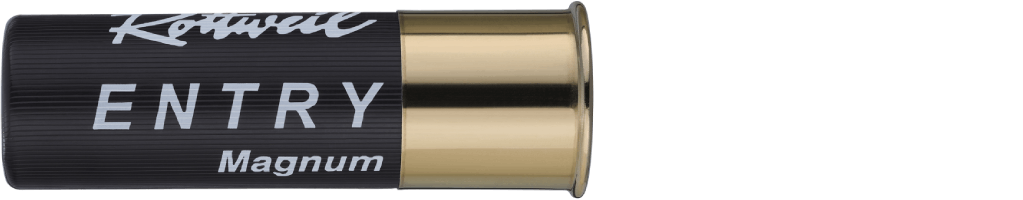

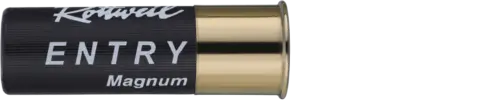

12/70 ROTTWEIL MAGNUM ENTRY I
32.5 g / 502 gr
Product characteristics
- Articlenumber*
- 2313724
- Product line
- DAG
- Caliber
- 12/70 Magnum
- Purpose
- Law enforcement, Military
- Bulletweight (g)
- 32.5 g
- Bulletweight (gr)
- 502 gr
- Bullet type
- Powder pressing
- Bullet material
- Zinc powder (compacted)
- Primer cap
- SINOXID
- Case material
- Polymer with brass culot
- Propellant powder
- Monobasic nitrocellulose powder
- Total cartridge mass (g)
- ca. 45 g
- Net explosive mass (g)
- max. 1,8 g
- Weapon category
- Semi-automatic shotgun, Pump-action shotgun
- C.I.P.possible
- Yes
- Temperature range
- -10°C to +52°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 1,050 bar (21°C)
- Velocity measuring point
- v2,5
- Velocity (m/s)
- 320 m/s
- Velocity (ft/s)
- 1,050 ft/s
- Energy (J)
- 1,665 J
- Length test barrel
- 700 mm
Packaging Configurations
- Packaging type
- Folding box
- Count
- 25
- Package dimension
- 10x10x7 cm
- Weight
- ca. 0,95 kg
- Packaging type
- Corrugated cardboard box
- Count
- 200
- Package dimension
- 32x22x13 cm
- Weight
- ca. 8,0 kg
warning
Fire or projection hazard.
Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Ground and bond container and receiving equipment. Keep only in original packaging. Wear eye protection. In case of fire: Explosion risk. Evacuate area. DO NOT fight fire when fire reaches explosives. The information on the product label must always be followed.
manufacturer
RWS GmbH / Kronacher Str. 63 / 90765 Fürth / www.rws-technology.com
