Product line DM

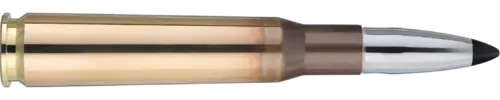

12.7MMx99, DM31A1, Hartkern

47.5 g / 733 gr

The DM31A1 is a lead-free cartridge for the German Armed Forces with enhanced penetration capabilities. It is designed for use with repeater rifles and semi-automatic firearms for precision shooters and snipers. It has a hard core bullet consisting of a hardened steel core with a gas check. This guarantees high effectiveness against hard targets. The use of components without lead or heavy metals minimises exposure.

  • Click here to view the content and accept all necessary cookies.

    All cookie settings can be managed on this page.

Product characteristics

Articlenumber*
2413147
Product line
DM
Caliber
12,7x99
Purpose
Military, German Armed Forces
Bulletweight (g)
47.5 g
Bulletweight (gr)
733 gr
Bullet type
Full metall jacket-hard core
Bullet material
Tombac (galvanised) / Steel (galvanised)
Bullet jacket material
Tombac (galvanised)
Bullet core material
Steel (galvanised)
Leadfree
Yes
Primer cap
SINTOX
Case material
Brass
Propellant powder
Two-base nitrocellulose powder
Total cartridge mass (g)
ca. 122 g
Net explosive mass (g)
ca. 17 g
Weapon category
Anti-material rifle, Heavy machine gun
Temperature range
-54°C to +63°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure
max. 4,500 bar (21°C)
Velocity measuring point
v10
Velocity (m/s)
895 m/s
Velocity (ft/s)
2,936 ft/s
Energy (J)
19,024 J
Length test barrel
1143 mm
Velocity measuring point tolerance (± m/s)
10 ± m/s

Precision data

Accuracy type
sV; SH
Accuracy determination range (m)
300 m
Precision requirement
≤ 75 mm
Length test barrel
1143
Penetration performance
3,5 mm SR235JR
Barrel length:
737 mm
Twist length:
381 mm (1:15")

Ballistic data – Anti-material rifle

Velocity measuring point type II
v10
Velocity (m/s)
895 m/s
Weapon category
Anti-material rifle
Distance (m)Velocity (m/s)Energy (J)Flight time (ms)Ballistic coefficient G1Ballistic coefficient G7
0900192380
2588718686280,6030,334
100851172001140,6270,306
1500,339
200805153912350,6430,349
2500,36
300762137903630,6620,355
3500,367
400722123804980,6850,361
4500,374
500683110796400,6860,349
5500,382
60064598817910,6860,356
70060887809510,675
800573779811200,69
900539690013000,688
1000505605714920,65
1100473531416960,656
1200442464019150,638

Packaging Configurations

[Translate to English:]
Packaging type
Folding box
Count
10
Package dimension
9.5x14x4 cm
Weight
ca. 1,2 kg
[Translate to English:]
Packaging type
M2A1 metal box
Count
100
Package dimension
31x19.5x15,5 cm
Weight
ca. 15,7 kg
