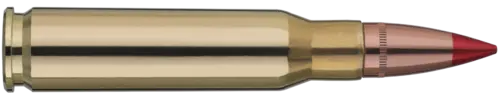

The 7.62x51 NATO Tracer cartridge is engineered for military use. Its compatibility with all NATO firearms is guaranteed. The cartridge can therefore be used for mission scenarios and in training. The bullet consists of a lead core, bullet jacket and the pyrotechnic charge inserted in the tail. It has a dark tracer that conceals the shooter’s position. The visible tracer begins at a range of 13 m to 140 m and illuminates up to a distance of at least 775 m. The visible pyrotechnic charge glows red. The cartridge is also fully compliant with AEP-97 (M-CMOPI).
Product line NATO
7.62x51 NATO TRACER (M62)
9.1 g / 140 gr
Product characteristics
- Articlenumber*
- 2427087
- Product line
- NATO
- Caliber
- 7,62x51
- Purpose
- Law enforcement, Military
- Bulletweight (g)
- 9.1 g
- Bulletweight (gr)
- 140 gr
- Bullet type
- Tracer
- Bullet material
- Pb (Lead) / Pyrotechnic charges / Steel (plated)
- Bullet jacket material
- Tombac-plated steel
- Bullet core material
- Pb (Lead) / Illuminant charge
- Primer cap
- SINOXID
- Case material
- Brass
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca. 24.0 g
- Net explosive mass (g)
- ca. 3.4 g
- Weapon category
- Rifle, Medium machine gun
- Temperature range
- -54°C to +52°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 4,450 bar (21°C)
- Velocity measuring point
- v10
- Velocity (m/s)
- 820 m/s
- Velocity (ft/s)
- 2,690 ft/s
- Energy (J)
- 3,059 J
- Length test barrel
- 562 mm
Precision data
- Accuracy type
- sV; SH
- Accuracy determination range (m)
- 485m
- Precision requirement
- ≤ 265 mm
- Length test barrel
- 562
- Tracer color
- Red
- Tracer distance (min.)
- 775 m
- Barrel length:
- 406 mm
- Twist length:
- 254 mm (1:10")
Ballistic data – Designated marksman rifle (DMR)
- Velocity measuring point type II
- v10
- Velocity (m/s)
- 839 m/s
- Weapon category
- Designated marksman rifle (DMR)
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
|---|---|---|---|---|
| 0 | 846 | 3257 | 0 | |
| 25 | 829 | 30 | 0,434 | |
| 100 | 779 | 2761 | 123 | 0,433 |
| 200 | 714 | 2320 | 257 | 0,426 |
| 300 | 650 | 1922,375 | 404 | 0,411 |
| 400 | 588 | 1573 | 566 | 0,402 |
| 500 | 528 | 1268 | 746 | 0,388 |
| 600 | 469 | 1001 | 946 | 0,361 |
| 700 | 412 | 772 | 1174 | 0,329 |
| 800 | 358 | 583 | 1434 | 0,277 |
| 900 | 319 | 463 | 1732 | 0,259 |
| 1000 | 294 | 393 | 2059 | 0,268 |
| 1100 | 274 | 342 | 2412 | 0,252 |
| 1200 | 257 | 301 | 2790 | 0,25 |
Packaging Configurations
- Packaging type
- Folding box
- Count
- 20
- Package dimension
- 6.1x7.3x4.3 cm
- Weight
- approx. 0,50 kg
- Packaging type
- M2A1 metal box
- Count
- 500
- Package dimension
- 31x19.5x15,5 cm
- Weight
- ca. 15,2 kg
