Product line DAG

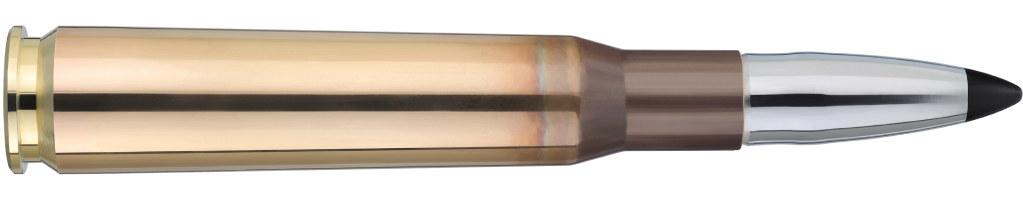

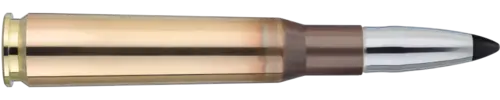

12.7x99 HC SX

47.5 g / 733 gr

The 12.7x99 HC SX tactical cartridge is designed for military use. It is designed for use with repeater rifles and semi-automatic firearms for precision shooters and snipers. It has a hard core bullet consisting of a hardened steel core with a jacket. This guarantees utterly reliable effectiveness against hard targets. The cartridge can be used without restriction in a temperature range from -54°C to +52°C. It is also sealed against the ingress of water and moisture. The use of components without lead or heavy metals minimises exposure.

  • Click here to view the content and accept all necessary cookies.

    All cookie settings can be managed on this page.

Product characteristics

Articlenumber*
on request
Product line
DAG
Caliber
12,7x99
Purpose
Law enforcement, Military
Bulletweight (g)
47.5 g
Bulletweight (gr)
733 gr
Bullet type
Hard core
Bullet material
Tombac (tin-plated) / Steel (plated)
Bullet jacket material
Tombac (tin-plated)
Bullet core material
Steel
Leadfree
Yes
Primer cap
SINTOX
Case material
Brass
Propellant powder
Two-base nitrocellulose powder
Total cartridge mass (g)
ca. 122 g
Net explosive mass (g)
ca. 17 g
Weapon category
Anti-material rifle, Heavy machine gun
Temperature range
-54°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure
max. 4,500 bar (21°C)
Velocity measuring point
v10
Velocity (m/s)
895 m/s
Velocity (ft/s)
2,936 ft/s
Energy (J)
19,024 J
Length test barrel
1143 mm
Velocity measuring point tolerance (± m/s)
10 ± m/s

Precision data

Accuracy type
sV; SH
Accuracy determination range (m)
300 m
Precision requirement
≤ 75 mm
Length test barrel
1143
Penetration performance
18 mm armoured beam RHA
Penetration distance
300 m
Barrel length:
737 mm
Twist length:
381 mm (1:15")

Ballistic data – Anti-material rifle

Velocity measuring point type II
v10
Velocity (m/s)
895 m/s
Weapon category
Anti-material rifle

Packaging Configurations

Packaging type
Folding box
Count
10
Package dimension
11x3x6 cm
Weight
ca. 1,2 kg
Packaging type
M2A1 metal box
Count
100
Package dimension
31x19.5x15,5 cm
Weight
ca. 15,7 kg
