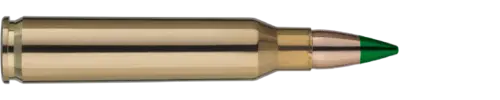

The DM11A1 cartridge is a low-emission tactical cartridge in 5.56x45 calibre, which is specially engineered for the requirements of the German Armed Forces. The cartridge was engineered according to their technical requirements and is therefore intended for firearms used by the German Armed Forces in this calibre. It is equally compatible with semi-automatic and fully automatic firearms. The bullet design corresponds to the SS109 and M855 bullet types and consists of two bullet cores with a tail cover, with a hardened steel front core and a lead rear core. To reduce emissions, the bullet is fully encapsulated and the cartridge is equipped with a SINTOX primer.
Product line DM
5.56MMx45, DM11A1, Doppelkern
4.0 g / 62 gr
Product characteristics
- Articlenumber*
- 2319155
- Product line
- DM
- Caliber
- 5,56x45
- Purpose
- Military, German Armed Forces
- Bulletweight (g)
- 4.0 g
- Bulletweight (gr)
- 62 gr
- Bullet type
- Dual core
- Bullet material
- Pb (Lead) / Tombac / Steel
- Bullet core material
- Pb (Lead) / Hardened steel core
- Primer cap
- SINTOX
- Case material
- Tombac
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca. 11.9 g
- Net explosive mass (g)
- ca. 1.8 g
- Weapon category
- Rifle, Machine gun
- KWKG
- Yes
- Temperature range
- -54°C to +63°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 4,050 bar (21°C)
- Velocity measuring point
- v10
- Velocity (m/s)
- 880 m/s
- Velocity (ft/s)
- 2,887 ft/s
- Energy (J)
- 1,549 J
- Length test barrel
- 508 mm
Precision data
- Accuracy type
- sa
- Accuracy determination range (m)
- 100 m
- Precision requirement
- ≤ 22 mm
- Length test barrel
- 508
- Penetration performance
- 3,5 mm SR235JR
- Penetration distance
- 570 m
- Barrel length:
- 480 mm
- Twist length:
- 178 mm (1:7")
Ballistic data – Rifle
- Velocity measuring point type II
- v10
- Velocity (m/s)
- 910 m/s
- Weapon category
- Rifle
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 | Ballistic coefficient G7 |
|---|---|---|---|---|---|
| 0 | 920 | 1693 | 0 | ||
| 25 | 895 | 1602 | 28 | 0,312 | 0,163 |
| 100 | 820 | 1345 | 115 | 0,3 | 0,161 |
| 200 | 726 | 1054 | 245 | 2,99 | 0,163 |
| 300 | 638 | 814 | 392 | 0,3 | 0,162 |
| 400 | 557 | 620 | 559 | 0,3 | 0,165 |
| 500 | 481 | 462 | 753 | 0,291 | 0,166 |
| 600 | 415 | 344 | 977 | 0,289 | 0,179 |
| 700 | 370 | 274 | 1234 | 0,347 | 0,240 |
| 800 | 338 | 228 | 1517 | 0,374 | 0,272 |
| 900 | 314 | 197 | 1825 | 0,367 | 0,150 |
| 1000 | 291 | 169 | 2156 | 0,275 | 0,117 |
| 1100 | 266 | 142 | 2515 | 0,191 | 0,094 |
| 1200 | 240 | 115 | 2911 | 0,145 | 0,080 |
Packaging Configurations
- Packaging type
- Folding box
- Count
- 30
- Package dimension
- 10x6x3 cm
- Weight
- approx. 0,40 kg
- Packaging type
- Wooden crate
- Count
- 1,800
- Package dimension
- 45x36x15 cm
- Weight
- ca. 29,0 kg
