Product line NATO

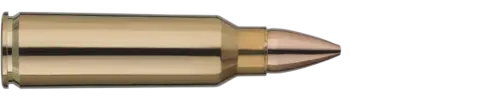

5,56x45 NATO BALL (SS109)

4.0 g / 62 gr

The 5.56x45 NATO Ball is the standard tactical military cartridge for the NATO alliance and its partners. It is engineered for flawless functionally in all NATOapproved standard firearms. The bullet design corresponds to the SS109 and M855 bullet types and consists of two bullet cores with a tail cover, with a hardened steel front core and a lead rear core. SINOXID primer technology is used for the load to guarantee reliable ignition even under the most adverse conditions. A REACH-compliant nitrocellulose powder (two-base) is used as the propellant, which enables effective use of the cartridge in a temperature range from -54°C to +52°C. It is also waterproof and fully compliant with AEP-97 (M-CMOPI).

SINOXID
SUITABLE FOR FULL AUTOMATIC
WATERPROOF
SHOCKPROOF
MAXIMUM SHELF LIVE
NATO
ARMOUR PIERCING
LINKED AVAILABLE
CLIPPED AVAILABLE
STANAG
TEMPERATUR RANGE

Product characteristics

Articlenumber*: 2422469
Product line: NATO
Caliber: 5,56x45
Purpose: Military
Bulletweight (g): 4.0 g
Bulletweight (gr): 62 gr
Bullet type: Dual core
Bullet material: Pb (Lead) / Tombac / Steel
Bullet jacket material: Tombac
Bullet core material: Pb (Lead) / Hardened steel core
Primer cap: SINOXID
Case material: Brass
Propellant powder: Two-base nitrocellulose powder
Total cartridge mass (g): ca. 12.0 g
Net explosive mass (g): ca. 1.8 g
Weapon category: Rifle, Machine gun
KWKG: Yes
Temperature range: -54°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure: max. 4,450 bar (21°C)
Velocity measuring point: v10
Velocity (m/s): 925 m/s
Velocity (ft/s): 3,035 ft/s
Energy (J): 1,711 J
Length test barrel: 508 mm
Velocity measuring point tolerance (± m/s): 15 ± m/s

Precision data

Accuracy type: sV; SH
Accuracy determination range (m): 300 m
Precision requirement: ≤ 100 mm
Length test barrel: 508
Penetration performance: 3,5 mm SR235JR
Penetration distance: 570

Colt M16A2

Barrel length:: 508 mm
Twist length:: 178 mm (1:7")

Ballistic data – Rifle

Velocity measuring point type II: v10
Velocity (m/s): 914 m/s
Weapon category: Rifle

Distance (m)	Velocity (m/s)	Energy (J)	Flight time (ms)	Ballistic coefficient G1	Ballistic coefficient G7
0	925	1711	0
25	898	1613	27	0,292	0,151
100	818	1338	115	0,281	0,151
200	719	1034	245	0,284	0,155
300	626	784	395	0,281	0,153
400	538	579	567	0,273	0,151
500	451	407	770	0,242	0,144
600	379	287	1012	0,238	0,158
700	329	216	1297	0,237	0,123
800	298	178	1617	0,236	0,094
900	275	151	1967	0,229	0,106
1000	257	132	2343	0,234	0,123

Packaging Configurations

Packaging type: Folding box
Count: 30
Package dimension: 10x6x3 cm
Weight: ca. 0,40 kg

Packaging type: M2A1 metal box
Count: 870
Package dimension: 31x19.5x15,5 cm
Weight: ca. 13,9 kg

LINKED AVAILABLE
CLIPPED AVAILABLE
