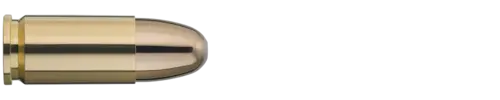

The 9x19 GREEN RANGE SXF is a training cartridge for use by law enforcement. The lead-free and low-emission training cartridge largely fulfils the requirements of TR 2009. The deformation bullet is turned from solid brass and has a weight of 6.1 g. It also describes the same trajectory as the ACTION 4 SXF and ACTION 5 SXF tactical cartridges. The special bullet geometry significantly reduces the risk of ricochets. In addition, the cartridge’s excellent reliability makes it suitable for use with fully automatic submachine guns.
Product line ACTION
9x19 GREEN RANGE SXF
6.1 g / 94 gr
Product characteristics
- Articlenumber*
- 2317855
- Product line
- ACTION
- Caliber
- 9x19
- Purpose
- Law enforcement
- Bulletweight (g)
- 6.1 g
- Bulletweight (gr)
- 94 gr
- Bullet type
- Solid
- Bullet material
- Brass
- Leadfree
- Yes
- Primer cap
- SINTOX Forensis
- Case material
- Brass
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca. 10.1 g
- Net explosive mass (g)
- ca. 0.5 g
- Weapon category
- Pistol, Submachine gun
- Temperature range
- -20°C to +52°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 2,700 bar (21°C)
- Velocity measuring point
- v3
- Velocity (m/s)
- 415 m/s
- Velocity (ft/s)
- 1,362 ft/s
- Energy (J)
- 525 J
- Length test barrel
- 100 mm
- Velocity measuring point tolerance (± m/s)
- 15 ± m/s
Precision data
- Accuracy type
- sa
- Accuracy determination range (m)
- 25 m
- Precision requirement
- ≤ 25 mm
- Length test barrel
- 100
- Barrel length:
- 104 mm
- Twist length:
- 250 mm (1:10")
Ballistic data – Pistol
- Velocity measuring point type I
- v3
- Velocity (m/s)
- 415 m/s
- Weapon category
- Pistol
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
|---|---|---|---|---|
| 0 | 414 | 523 | 0 | |
| 25 | 398 | 483 | 25 | 0,104 |
| 50 | 384 | 450 | 50 | 0,112 |
| 100 | 358 | 391 | 104 | 0,107 |
| 150 | 337 | 346 | 162 | 0,108 |
| 200 | 321 | 314 | 223 | 0,115 |
| 250 | 309 | 291 | 286 | 0,124 |
| 300 | 301 | 276 | 352 | 0,166 |
| 350 | 295 | 265 | 419 | 0,197 |
| 400 | 288 | 253 | 488 | 0,158 |
| 450 | 280 | 239 | 558 | 0,128 |
| 500 | 271 | 224 | 631 | 0,105 |
| 550 | 261 | 208 | 706 | 0,084 |
| 600 | 250 | 191 | 784 | 0,07 |
- Barrel length:
- 225 mm
- Twist length:
- 254 mm (1:10")
Ballistic data – Submachine gun
- Velocity measuring point type I
- v3
- Velocity (m/s)
- 415 m/s
- Weapon category
- Submachine gun
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
|---|---|---|---|---|
| 0 | 448 | 612 | 0 | |
| 25 | 430 | 564 | 23 | 0,104 |
| 50 | 414 | 523 | 46 | 0,112 |
| 100 | 383 | 447 | 97 | 0,104 |
| 150 | 358 | 391 | 151 | 0,11 |
| 200 | 337 | 346 | 208 | 0,108 |
| 250 | 321 | 314 | 269 | 0,115 |
| 300 | 309 | 291 | 333 | 0,124 |
| 350 | 301 | 276 | 399 | 0,166 |
| 400 | 295 | 265 | 466 | 0,197 |
| 450 | 288 | 253 | 535 | 0,158 |
| 500 | 280 | 239 | 605 | 0,128 |
| 550 | 271 | 224 | 678 | 0,105 |
| 600 | 261 | 208 | 753 | 0,084 |
Packaging Configurations
Our portfolio
More products
warning
Fire or projection hazard.
Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Ground and bond container and receiving equipment. Keep only in original packaging. Wear eye protection. In case of fire: Explosion risk. Evacuate area. DO NOT fight fire when fire reaches explosives. The information on the product label must always be followed.
manufacturer
RWS GmbH / Kronacher Str. 63 / 90765 Fürth / www.rws-technology.com
