Product line NATO

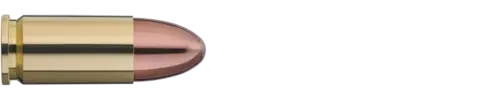

9x19 NATO BALL

8.0 g / 124 gr

The 9x19 NATO BALL is a tactical and training cartridge for military use. The cartridge is fully compatible with both pistols and submachine guns. It uses a heavy full metal jacket bullet with a lead core and weighs 8.0 g. This bullet design fully complies with the requirements of the Hague Convention respecting the Laws and Customs of War on Land (Annex E, Article 23). A SINOXID primer is used in the load, which guarantees reliable ignition even under the most adverse conditions. The cartridge is NATO-qualified according to the requirements of AEP-97.

  • Click here to view the content and accept all necessary cookies.

    All cookie settings can be managed on this page.

Product characteristics

Articlenumber*
2425005
Product line
NATO
Caliber
9x19
Purpose
Law enforcement, Military
Bulletweight (g)
8.0 g
Bulletweight (gr)
124 gr
Bullet type
Full metall jacket-soft core
Bullet material
Lead / Steel (tombac plated)
Bullet jacket material
Steel (tombac plated)
Bullet core material
Lead
Primer cap
SINOXID
Case material
Brass
Propellant powder
Two-base nitrocellulose powder
Total cartridge mass (g)
ca. 13,0 g
Net explosive mass (g)
ca. 0,4 g
Weapon category
Pistol
Temperature range
-54°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure
max. 2,850 bar (21°C)
Velocity measuring point
v10
Velocity (m/s)
385 m/s
Velocity (ft/s)
1,263 ft/s
Energy (J)
593 J
Length test barrel
200 mm
Velocity measuring point tolerance (± m/s)
15 ± m/s

Precision data

Accuracy type
sV; SH
Accuracy determination range (m)
50 m
Precision requirement
≤ 200 mm
Length test barrel
200
Barrel length:
104 mm
Twist length:
250 mm (1:10")

Ballistic data – Pistol

Velocity measuring point type I
v3
Velocity (m/s)
350 m/s
Velocity measuring point type II
v10
Velocity (m/s)
341 m/s
Weapon category
Pistol
Distance (m)Velocity (m/s)Energy (J)Flight time (ms)Ballistic coefficient G1
03504900
25330436740,129
503153971510,14
1002973533150,186
1502833204870,194
2002642796700,12
2502402308680,077
30021618710880,065
35019415113330,062
40017312016060,057
4501559619120,06
5001397722540,063
5501246226380,059
6001114930680,064
Barrel length:
225 mm
Twist length:
254 mm (1:10")

Ballistic data – Submachine gun

Velocity measuring point type I
v3
Velocity (m/s)
350 m/s
Velocity measuring point type II
v10
Velocity (m/s)
341 m/s
Weapon category
Submachine gun
Distance (m)Velocity (m/s)Energy (J)Flight time (ms)Ballistic coefficient G1
03855930
25358513670,128
503364521400,128
1003083792960,147
1502933434630,208
2002773076380,159
2502572648250,107
30023221510300,07
35020817312580,061
40018714015120,062
45016711217960,058
5001509021130,063
5501347224680,06
6001205828670,063
