Product line DAG

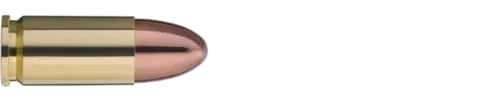

9x19 LF FMJ SX

6.0 g / 93 gr

The 9x19 LF FMJ SX is a lead-free tactical and training cartridge for law enforcement and military users. The cartridge is fully compatible with pistols and submachine guns proofed according to C.I.P. It has a classic full metal jacket bullet with a zinc core. The combination of lead-free bullet, REACH-compliant propellant powder and heavy metal-free primer reduces the shooter’s exposure to potentially harmful emissions to an absolute minimum.

  • Click here to view the content and accept all necessary cookies.

    All cookie settings can be managed on this page.

Product characteristics

Articlenumber*
2422975
Product line
DAG
Caliber
9x19
Purpose
Law enforcement, Military
Bulletweight (g)
6.0 g
Bulletweight (gr)
93 gr
Bullet type
Full metall jacket-soft core
Bullet material
Tombac-plated steel / Zn (zinc)
Bullet core material
Zn (zinc)
Leadfree
Yes
Primer cap
SINTOX
Case material
Brass
Propellant powder
Two-base nitrocellulose powder
Total cartridge mass (g)
ca. 12.0 g
Net explosive mass (g)
ca. 0.5 g
Weapon category
Pistol, Submachine gun
C.I.P.possible
Yes
Temperature range
-20°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure
max. 2,350 bar (21°C)
Velocity measuring point
v3
Velocity (m/s)
435 m/s
Velocity (ft/s)
1,427 ft/s
Energy (J)
568 J
Length test barrel
150 mm
Velocity measuring point tolerance (± m/s)
15 ± m/s
Barrel length:
104 mm
Twist length:
250 mm (1:10")

Ballistic data – Pistol

Velocity measuring point type I
v3
Velocity (m/s)
390 m/s
Weapon category
Pistol
Distance (m)Velocity (m/s)Energy (J)Flight time (ms)Ballistic coefficient G1
03904560
25367404660,159
503473611360,154
1003183032870,163
1502962634500,154
2002792346240,155
2502652118080,159
30025319210020,166
35024117412050,146
40023116014170,163
45022114716390,158
50021213518710,158
55020312421120,155
60019511423650,159
Barrel length:
225 mm
Twist length:
254 mm (1:10")

Ballistic data – Submachine gun

Velocity measuring point type I
v3
Velocity (m/s)
390 m/s
Weapon category
Submachine gun
Distance (m)Velocity (m/s)Energy (J)Flight time (ms)Ballistic coefficient G1
04305550
25402485600,155
503774261240,155
1003393452650,164
1503112904190,153
2002912545850,155
2502752277620,158
3002622069490,164
35024918611450,146
40023817013500,158
45022815615650,165
50021914417890,165
55021013220240,156
60020112122680,154

Packaging Configurations

Packaging type
Folding box
Count
50
Package dimension
11x3x6 cm
Weight
ca. 0,60 kg
Packaging type
Corrugated cardboard box
Count
1,000
Package dimension
24x14x18 cm
Weight
ca. 11,5 kg
