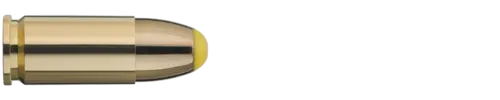

"The 9x19 ACTION 4 SXF is a cartridge specially designed for police and official use. It was developed and fully certified in accordance with the technical guideline for operational ammunition 2009. It is lead-free and with low-emission. This is ensured by a deformation bullet made of turned brass with a mass of 6.1 g. Particular features such as the special bullet geometry and the attached plastic starter cap enable controlled deformation and energy transfer to the target (max. 60 J/cm). Another special feature of the product is the X-ray detectable additive in the plastic cap, which facilitates its location during wound care."
Product line ACTION
9x19 ACTION 4 SXF
6.1 g / 94 gr
Product characteristics
- Articlenumber*
- 2317609
- Product line
- ACTION
- Caliber
- 9x19
- Purpose
- Law enforcement
- Bulletweight (g)
- 6.1 g
- Bulletweight (gr)
- 94 gr
- Bullet type
- Solid
- Bullet material
- Brass / Plastic
- Leadfree
- Yes
- Primer cap
- SINTOX Forensis
- Case material
- Brass
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca. 10.1 g
- Net explosive mass (g)
- ca. 0.6 g
- Weapon category
- Pistol, Submachine gun
- Temperature range
- -30°C to +52°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 2,700 bar (21°C)
- Velocity measuring point
- v3
- Velocity (m/s)
- 420 m/s
- Velocity (ft/s)
- 1,378 ft/s
- Energy (J)
- 538 J
- Length test barrel
- 100 mm
- Velocity measuring point tolerance (± m/s)
- 15 ± m/s
Precision data
- Accuracy type
- sa
- Accuracy determination range (m)
- 25 m
- Precision requirement
- ≤ 25 mm
- Length test barrel
- 100
- Barrel length:
- 104 mm
- Twist length:
- 250 mm (1:10")
Ballistic data – Pistol
- Velocity measuring point type I
- v3
- Velocity (m/s)
- 420 m/s
- Weapon category
- Pistol
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
|---|---|---|---|---|
| 0 | 420 | 538 | 0 | |
| 25 | 395 | 476 | 61 | 0,168 |
| 50 | 372 | 422 | 127 | 0,164 |
| 100 | 337 | 346 | 268 | 0,172 |
| 150 | 315 | 303 | 422 | 0,199 |
| 200 | 300 | 274,5 | 585 | 0,228 |
| 250 | 286 | 249 | 755 | 0,202 |
| 300 | 268 | 219 | 936 | 0,131 |
| 350 | 249 | 189 | 1130 | 0,102 |
| 400 | 231 | 163 | 1338 | 0,094 |
| 450 | 215 | 141 | 1563 | 0,095 |
| 500 | 200 | 122 | 1805 | 0,092 |
| 550 | 186 | 106 | 2065 | 0,09 |
| 600 | 173 | 91 | 2346 | 0,09 |
- Barrel length:
- 225 mm
- Twist length:
- 254 mm (1:10")
Ballistic data – Submachine gun
- Velocity measuring point type I
- v3
- Velocity (m/s)
- 420 m/s
- Weapon category
- Submachine gun
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
|---|---|---|---|---|
| 0 | 445 | 604 | 0 | |
| 25 | 418 | 533 | 58 | 0,171 |
| 50 | 393 | 471 | 120 | 0,167 |
| 100 | 351 | 376 | 255 | 0,165 |
| 150 | 324 | 320 | 403 | 0,186 |
| 200 | 307 | 287 | 562 | 0,226 |
| 250 | 293 | 262 | 729 | 0,22 |
| 300 | 277 | 234 | 905 | 0,159 |
| 350 | 257 | 201 | 1092 | 0,107 |
| 400 | 239 | 174 | 1294 | 0,1 |
| 450 | 222 | 150 | 1511 | 0,093 |
| 500 | 207 | 131 | 1745 | 0,096 |
| 550 | 192 | 112 | 1997 | 0,086 |
| 600 | 179 | 98 | 2268 | 0,095 |
Packaging Configurations
Our portfolio
More products
warning
Fire or projection hazard.
Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Ground and bond container and receiving equipment. Keep only in original packaging. Wear eye protection. In case of fire: Explosion risk. Evacuate area. DO NOT fight fire when fire reaches explosives. The information on the product label must always be followed.
manufacturer
RWS GmbH / Kronacher Str. 63 / 90765 Fürth / www.rws-technology.com
