The ACTION 6 SXF is a tactical cartridge for law enforcement that was adapted and tested according to the C.I.P. requirements. It can be used as a tactical or training cartridge and is optimised for use in full-size duty pistols. It also offers significantly reduced collateral risk during mission scenarios. The bullet geometry was optimised in line with the technical requirements of the C.I.P. This means that reliable defor- mation is guaranteed due to the lower gas pressure compared to TR 2009, even for covered targets. It also passes all the requirements of the FBI test for handgun ammunition (10% gelatine).
![[Translate to English:]](/resources/public/user_upload/Images/Artikel/Geschossgraphiken-9mm/9x19-ACTION-6-SXF.png "[Translate to English:]")
Product line ACTION

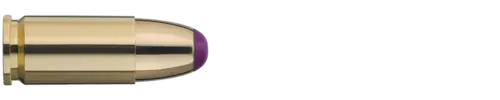

9x19 ACTION 6 SXF
6.1 g / 94 gr
Product characteristics
- Articlenumber*
- 2402448
- Product line
- ACTION
- Caliber
- 9x19
- Purpose
- Law enforcement
- Bulletweight (g)
- 6.1 g
- Bulletweight (gr)
- 94 gr
- Bullet type
- Solid
- Bullet material
- CuZn (brass)
- Leadfree
- Yes
- Primer cap
- SINTOX Forensis
- Case material
- Brass
- Propellant powder
- Two-base nitrocellulose powder
- Total cartridge mass (g)
- ca. 10.1 g
- Net explosive mass (g)
- ca. 0.5 g
- Weapon category
- Pistol, Submachine gun
- C.I.P.possible
- Yes
- Temperature range
- -20°C to +52°C
*article number for the smallest packaging unit
Data according to technical delivery terms
- Mean gas pressure
- max. 2,350 bar (21°C)
- Velocity measuring point
- v3
- Velocity (m/s)
- 420 m/s
- Velocity (ft/s)
- 1,378 ft/s
- Energy (J)
- 538 J
- Length test barrel
- 150 mm
- Velocity measuring point tolerance (± m/s)
- 15 ± m/s
Precision data
- Accuracy type
- sa
- Accuracy determination range (m)
- 25 m
- Precision requirement
- ≤ 25 mm
- Length test barrel
- 150
- Barrel length:
- 104 mm
- Twist length:
- 250 mm (1:10")
Ballistic data – Pistol
- Velocity measuring point type I
- v3
- Velocity (m/s)
- 373 m/s
- Weapon category
- Pistol
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
|---|---|---|---|---|
| 0 | 373 | 424 | 0 | |
| 25 | 355 | 384 | 69 | 0,183 |
| 50 | 340 | 353 | 141 | 0,19 |
| 100 | 317 | 306 | 293 | 0,198 |
| 150 | 302 | 278 | 455 | 0,23 |
| 200 | 290 | 257 | 624 | 0,246 |
| 250 | 274 | 229 | 801 | 0,153 |
| 300 | 256 | 200 | 990 | 0,116 |
| 350 | 238 | 173 | 1193 | 0,099 |
| 400 | 221 | 149 | 1411 | 0,094 |
| 450 | 206 | 129 | 1646 | 0,093 |
| 500 | 192 | 112 | 1898 | 0,093 |
| 550 | 179 | 98 | 2168 | 0,095 |
| 600 | 167 | 85 | 2458 | 0,094 |
- Barrel length:
- 225 mm
- Twist length:
- 254 mm (1:10")
Ballistic data – Submachine gun
- Velocity measuring point type I
- v3
- Velocity (m/s)
- 373 m/s
- Weapon category
- Submachine gun
| Distance (m) | Velocity (m/s) | Energy (J) | Flight time (ms) | Ballistic coefficient G1 |
|---|---|---|---|---|
| 0 | 415 | 525 | 0 | |
| 25 | 391 | 466 | 62 | 0,172 |
| 50 | 370 | 418 | 128 | 0,175 |
| 100 | 338 | 348 | 270 | 0,187 |
| 150 | 316 | 305 | 423 | 0,201 |
| 200 | 301 | 276 | 58 | 0,231 |
| 250 | 289 | 255 | 755 | 0,244 |
| 300 | 273 | 227 | 933 | 0,152 |
| 350 | 254 | 197 | 1123 | 0,109 |
| 400 | 236 | 170 | 1327 | 0,098 |
| 450 | 220 | 148 | 1547 | 0,096 |
| 500 | 205 | 128 | 1783 | 0,095 |
| 550 | 191 | 111 | 2036 | 0,093 |
| 600 | 178 | 97 | 2308 | 0,092 |
Packaging Configurations
- Packaging type
- Folding box
- Count
- 50
- Package dimension
- 11x3x6 cm
- Weight
- ca. 0,60 kg
- Packaging type
- Corrugated cardboard box
- Count
- 1,000
- Package dimension
- 24x14x18 cm
- Weight
- ca. 11,8 kg
