Product line ACTION

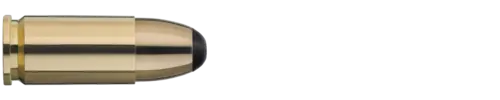

9x19 ACTION 5 SXF

6.1 g / 94 gr

The 9x19 ACTION 5 SXF cartridge is an upgrade of the 9x19 ACTION 4 SXF in regard to energy transfer to the target. It is a tactical cartridge that was developed specifically for handguns used by law enforcement or the police. The special bullet geometry leads to a maximum energy transfer of 75 J/cm, which equates to a 25% increase in energy transfer to the target. The lead-free deformation bullet is equipped with an attached plastic starter cap that ensures consistent deformation response even on covered soft targets.

  • Click here to view the content and accept all necessary cookies.

    All cookie settings can be managed on this page.

Product characteristics

Articlenumber*
2314722
Product line
ACTION
Caliber
9x19
Purpose
Law enforcement, Special forces
Bulletweight (g)
6.1 g
Bulletweight (gr)
94 gr
Bullet type
Solid
Bullet material
Brass / Plastic
Leadfree
Yes
Primer cap
SINTOX Forensis
Case material
Brass
Propellant powder
Two-base nitrocellulose powder
Total cartridge mass (g)
ca. 10.1 g
Net explosive mass (g)
ca. 0.6 g
Weapon category
Pistol, Submachine gun
Temperature range
-20°C to +52°C

*article number for the smallest packaging unit

Data according to technical delivery terms

Mean gas pressure
max. 2,700 bar (21°C)
Velocity measuring point
v3
Velocity (m/s)
420 m/s
Velocity (ft/s)
1,378 ft/s
Energy (J)
540 J
Length test barrel
100 mm
Velocity measuring point tolerance (± m/s)
15 ± m/s

Precision data

Accuracy type
sa
Accuracy determination range (m)
25 m
Precision requirement
≤ 25 mm
Length test barrel
100
Barrel length:
104 mm
Twist length:
250 mm (1:10")

Ballistic data – Pistol

Velocity measuring point type I
v3
Velocity (m/s)
420 m/s
Weapon category
Pistol
Distance (m)Velocity (m/s)Energy (J)Flight time (ms)Ballistic coefficient G1
04205380
25395476610,168
503724221270,164
1003373462680,172
1503153034220,199
200300274,55850,228
2502862497550,202
3002682199360,131
35024918911300,102
40023116313380,094
45021514115630,095
50020012218050,092
55018610620650,09
6001739123460,09
Barrel length:
225 mm
Twist length:
254 mm (1:10")

Ballistic data – Submachine gun

Velocity measuring point type I
v3
Velocity (m/s)
420 m/s
Weapon category
Submachine gun
Distance (m)Velocity (m/s)Energy (J)Flight time (ms)Ballistic coefficient G1
04696710
25440590550,168
504135201140,166
1003674112420,169
1503333383860,169
2003132995410,209
2502992737050,238
3002842468760,185
35026521410580,121
40024718612540,107
45022916014650,093
50021313816920,092
55019812019360,091
60018410321990,089

Packaging Configurations

Packaging type
Folding box
Count
50
Package dimension
11x3x6 cm
Weight
ca. 0,60 kg
Packaging type
Corrugated cardboard box
Count
1,000
Package dimension
24x14x18 cm
Weight
ca. 11,8 kg
